  Meet the C&D Emerging Energy’s reliable mobile power solution. It is compatible with both traditional and smart generators, safeguarding the batteries of your vehicle while reaching up to 95% charging efficiency. With advanced charging logic, the charger improves performance for better energy management. From RVs to off-grid applications, this charger delivers the smart, stable energy you need — wherever you go.   Not used "IGNTION” --Do not connect the ACC CH3: Start Battery Original vehicle battery input channel Charging logic >12.5V charging starts after 5s≤12.3V±0.1V stop charging >25V charging staris aiter 5s≤24.6V±0.2V stop charging Voltage range 12.5-16Vdc 25-32Vdc Voltage system identification <17Vdc >17Vdc Normal starting voltage >13.2Vdc >26.4Vdc Overvoltage proteciion point >16.5V >32.5V Overvoltage recovery point <16V <32V Undervoltage protection point <12.3Vdc <24.6Vdc Undervoltage recovery point >12.5Vdc >25Vdc CH2:Solar ArayPV inputchannel Voltage range 14.5-45Vdc Undervoltage protection point <14.1Vdc Undervoltage recovery point >14.5Adc Overvoltage protection point >46V Overvoltage recovery point <45V MAX power <23V input.500W(MAX600W);≥37.5-45V input,750W(MAX 800W) CH1:House Battery House Battery Channel Battery type AGM/GEL/FLOODED/LITHIUM Output voltage 13.8-15.5Vdc, Typical value: 12v, Min: 8v Overvoltage protection 16Vdc Overvoltage recovery 15.5Vdc Output current 5/10/15/20/25130135/40/45/50A Output power 775W Leakage current <50mA Efficiency 95% BTS Temperature detection Operating temperature descriptionNo lithium battery, set to nor and disconnect the sensor Remote Long-range CAN Use "IGNITION"--connect the ACC CH3:Start BatteryOriginal vehicle battery input channel Parameter 12V 24V Normal starting voltage >12V >24V Charging logic >12.5V charging starts after 5s≤11.8V±0.1V stop charging >24V charging starts after 5s≤23.6V±0.2V stop charging

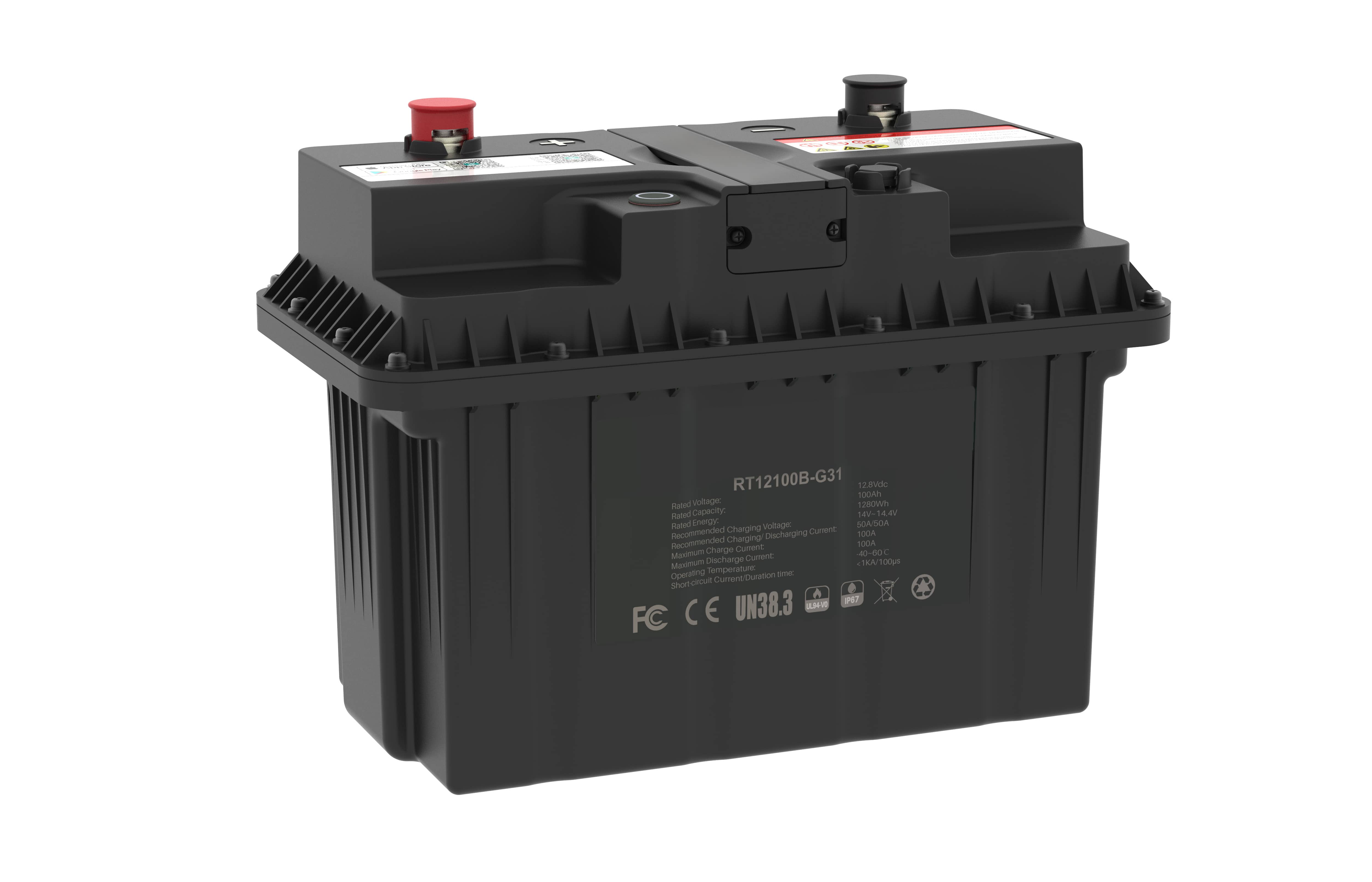

C&D Emerging Energy proudly presents its 12V lithium iron phosphate (LiFePO₄) battery module, built in the industry-standard BCI Group 31 size. This compact yet powerful battery is an ideal solution for a wide range of deep-cycle applications — including recreational vehicles (RVs), boats, trucks, remote cabins, and other off-grid setups. Designed as a direct replacement for traditional deep-cycle lead-acid batteries, it offers significantly improved performance, longevity, and efficiency.The battery features robust internal protection against common electrical issues such as under-voltage, over-voltage, over-current, over-temperature, under-temperature, short circuits, and system errors. These intelligent safeguards ensure safe and stable operation in demanding environments. In addition, the battery supports advanced management functions, including precise State of Charge (SoC) monitoring and automatic cell balancing, helping users maintain optimal performance and extend the battery’s service life.With its durable design and intelligent control, this 12V LiFePO₄ battery delivers reliable, maintenance-free energy — making it the perfect power companion for life on the road, on the water, or off the grid.     Electrical Specifcation Nominal Voltage 12.8 VDC Nominal Capacity 100 Ah Resistance <10 mΩ Self Discharge ≤3% per month Max. Batteries in Parallel or Series 4S4P/IS16P Cycle Life (25°c) >4500 (80% DOD, 0.5 C, 25 °C) Design Life ≥10 years Short Circuit Current Duration ＜1 kA/100 us Discharge of Depth (DoD) 100% Discharge Specifcation Max. continuous Discharging current 100 A Peak Discharging current 200 A @30 s Charge Specifcation Recommended Charging Current 50 A Max. Continuous Charging Curent 100 A Recommended Charging Voltage 14 V~14.8 V Environment Specifcation Storage Temperature  -4℉~140℉(-20°C~60℃) Operating Temperature  -4℉~122℉(20°C~50°C*The battery does not support charging when the temperature is below 32 'F (0 °C) Max. Altitude 13123 ft (4000 m) Relative Humidity 5%~95% (non-condensing) Mechanical Specifcation Dimensions (LxWxH) 12.8 in x 6.83 in x 937 in (325 mm x 173.5 mm x 238 mm) Weight Approx. 26.46 lbs (12 kg) Terminal Type M8 Terminal Torque 9 ±1N-m Case Material PC IP Rating IP67 Cell Type-chemistry LiFePO4 Communication BLE 5.0

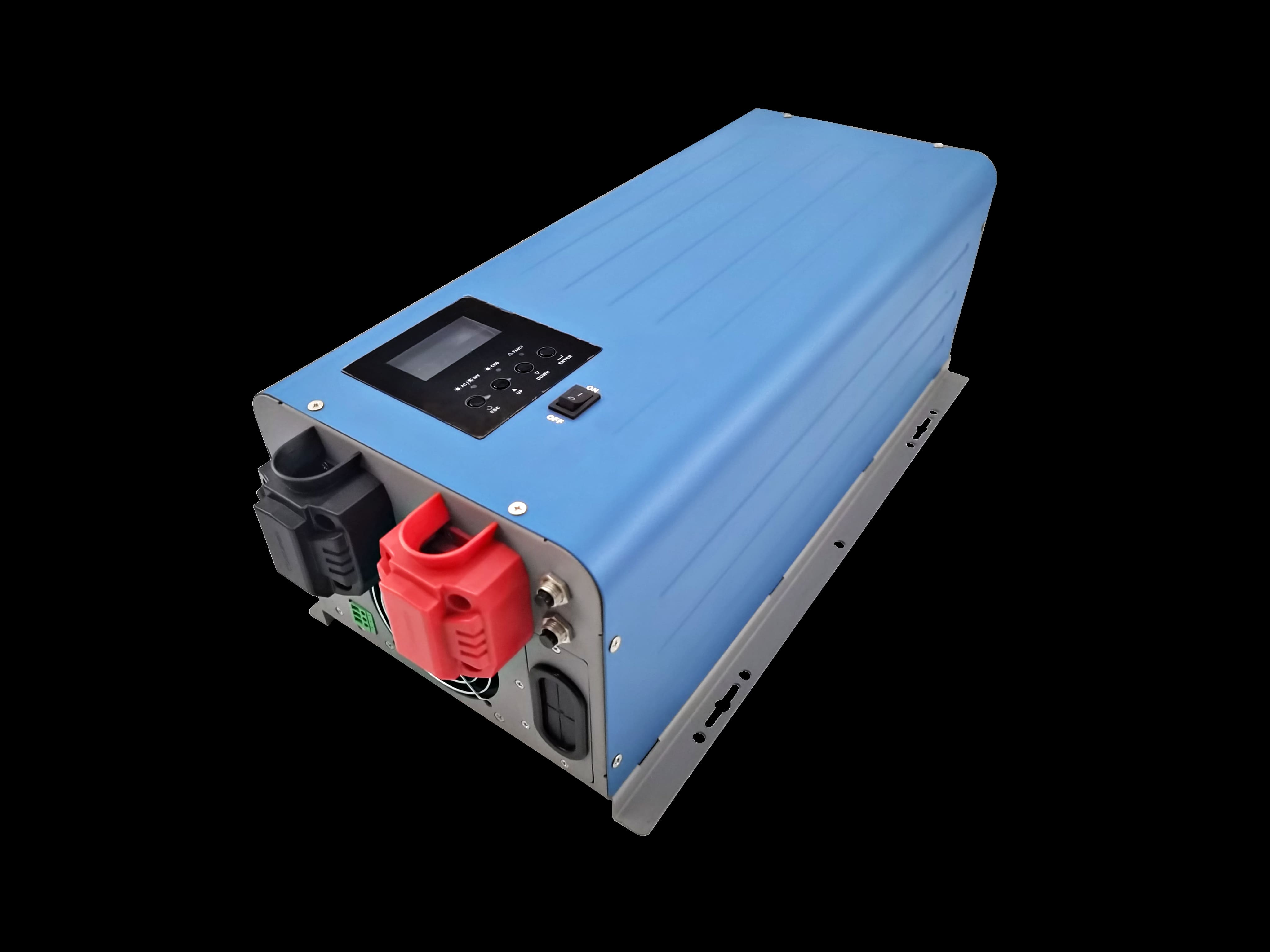

As the latest innovation from C&D Emerging Energy, the GMC Inverter Charger is purpose-built to meet the growing demands of modern mobile power systems. Engineered for use in recreational vehicles, specialty vehicles, and marine applications, it delivers exceptional performance with high efficiency, strong surge capability, and intelligent multi-stage charging.The GMC inverter charger features seamless automatic switching between AC and DC systems, ensuring uninterrupted power supply. It also integrates a main battery charger and a CAN-BUS communication port, enabling advanced system monitoring and interactive control to meet a wide range of user requirements.Built to perform in harsh conditions, the unit operates reliably at temperatures up to 50°C, maintaining full power output without derating or interruption. Durable, intelligent, and versatile, the GMC inverter charger is the ideal solution for mobile and off-grid power applications.     MODEL GMC 2000 GMC 3000 GMC 4000 GMC 5000 GMC 6000 Raled Power 2000W 3000W 4000W 5000W 6000W INPUT Voltage 100V110V120VAC; 220/230V240VAC Selectable Voltage Range Wide Range: 75VAC-138VAC; 155VAC-275VAC (for home appliances)Narrow Range: 82VAC-138VAC: 165VAC-275VAC (for personal computer) Frequency 40-70Hz 100/110V/120VAC(±5W); 220V/230V240VAC(±10V) OUTPUT AC Voltage Regulation(Batt Mode) 100/110/120VAC(±5W); 220/230/240VAC(±10V) Surge PoAer 4000VA 9000VA 12000VA 15000VA 18000VA Efficiency (Peak) 88% 91% Transher Time <20ms < 10ms Wave form Pure sine wave BATTERY Battery Voltage 12V/24V 12V/24V/48V 24V/48V 24V/48V 24V/48V Charge curent 75A/35A 75A/50A/25A 75A/35A 75A/45A 75A/50A Fast Charge Voltage 14.3VDC for 12V(*2 for 24V. *4 for 48V) Float Charge Voltage 13.7VDC for 12V(*2 for 24V. *4 for 48V) Battery Low Voltage Alarm 16.5VDC for 12V(*2 for 24V. *4 for 48V) Over Voltage Protection 10.5VDC for 12V(*2 for 24V. *4 for 48V) Battery low Voltage Shutdown 10.0VDC for 12V(*2 for 24V. *4 for 48V) Protection Over charging, Over temp, Over battery voltage, Over load, short-circult Operating EnvironmentTemperature 50℃ Cooling Intelligent Fan Display LCD Specification Setting By LCD:Charging current, battery type, input voltage, output frequency, wide and narrowof AC input voltage, power-saver model, AC priority or battery priority PHYSICAL Dimension. (D"V"H)mm 532*257*185.5 617.5*345*199.5 Net weight (kg) 15 25.2/24.6 34.4/33.8 37.9/38.2 41.6/40.5 ENVIRONMENT Humidity 5-95 Relative humidity (No-condensing) Operating Temperature  -10°C-50°C Storage Temperature  -10°C-60°C

  C&D Emerging Energy’s pure sine wave inverter delivers stable, high-quality power output that ensures reliable performance across a wide range of devices. Whether you're powering a coffee machine, microwave, television, satellite system, printer, or other heavy-duty equipment, this inverter provides clean energy that mimics the electricity from the grid. It's the ideal solution for operating both household appliances and sensitive office electronics, offering consistent performance and protecting your devices from power fluctuations or damage.   MODEL SCH1000 SCH1500 SCH2000 SCH3000 Output Power 1000W 1500W 2000W 3000W Input Current(MAX DCAmps) 30A 60A 100A 150A Surge Power 2000W 3000W 4000W 6000W Dc Input Voltage 12, 24 or 48 VDC DC input Regulation 10.5-15 VDC (x2 for 24 VDC: x4 for 48 VDC) Output Voltage 100/110/120VAC+/-3%: 220/230/240VAC+1-5% Output Frequency 50/60Hz+/-0.05% Output Waveform True sine wave THD<3% AC Input Voltage 100/110/120VAC+/-3%:220/230/240VAC+/-5% AC Input Frequency 50/60Hz+/-0.05% Power Factor 0.8-1 Efficiency 110V 92% 92% 93% 92% 230V 93% 93% 93% 93% CONTROL & SIGNALINDICATES Fault indication Red LED light and buzz alarm Work indication Green LED light Remote Control CR10 or CR11(work with DBs battery isolator) Battery type AGM, Seal lead acid, Gel, open lead acid, LifeO4 Protection Overload, Over/under input voltage, Over temperature, Short circuit Safety AS/ NZS 4763:2011. UL458, LVD(EN60950) GENERAL PARAMETER Operating Temp  -10~45°C Working Humidity 20%~90% RH Storage Temp  -30-70°C Cooling Automatic temp-control fans Weight (kg) 3.2 3.5 4.6 5.8 Size( mm) 376*254*119 416*254*119 457.5*254*119 572*254*119

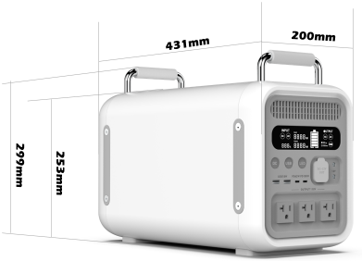

  As the trend of exquisite camping redefines outdoor experiences, campers are seeking more than just functionality — they desire products that combine performance with refined aesthetics. Our portable power stations are designed to meet these evolving expectations. Featuring a highly artistic appearance and versatile functionality, they are crafted to enhance high-end camping lifestyles and unlock new possibilities for luxurious outdoor adventures. Beyond outdoor use, our power stations are engineered to handle industrial-grade applications. They can easily power tools such as drills, saws, jackhammers, grinders, and air compressors, delivering reliable energy wherever it’s needed. We offer full support for customization and ODM solutions to meet your brand’s specific needs and vision.

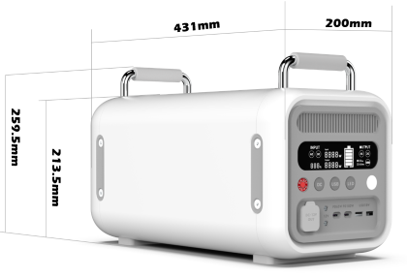

  As the trend of exquisite camping redefines outdoor experiences, campers are seeking more than just functionality — they desire products that combine performance with refined aesthetics. Our portable power stations are designed to meet these evolving expectations. Featuring a highly artistic appearance and versatile functionality, they are crafted to enhance high-end camping lifestyles and unlock new possibilities for luxurious outdoor adventures. Beyond outdoor use, our power stations are engineered to handle industrial-grade applications. They can easily power tools such as drills, saws, jackhammers, grinders, and air compressors, delivering reliable energy wherever it’s needed. We offer full support for customization and ODM solutions to meet your brand’s specific needs and vision.

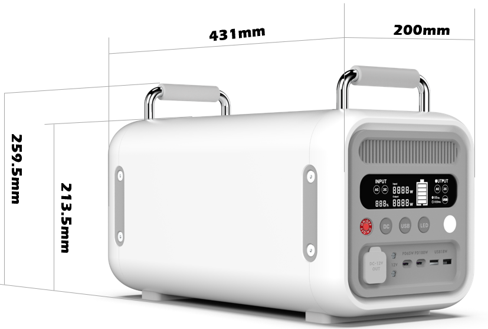

    As the trend of exquisite camping redefines outdoor experiences, campers are seeking more than just functionality — they desire products that combine performance with refined aesthetics. Our portable power stations are designed to meet these evolving expectations. Featuring a highly artistic appearance and versatile functionality, they are crafted to enhance high-end camping lifestyles and unlock new possibilities for luxurious outdoor adventures. Beyond outdoor use, our power stations are engineered to handle industrial-grade applications. They can easily power tools such as drills, saws, jackhammers, grinders, and air compressors, delivering reliable energy wherever it’s needed. We offer full support for customization and ODM solutions to meet your brand’s specific needs and vision.
